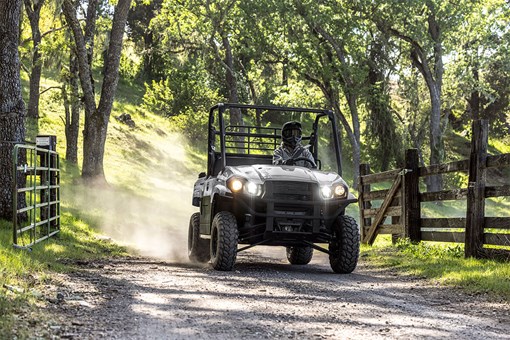

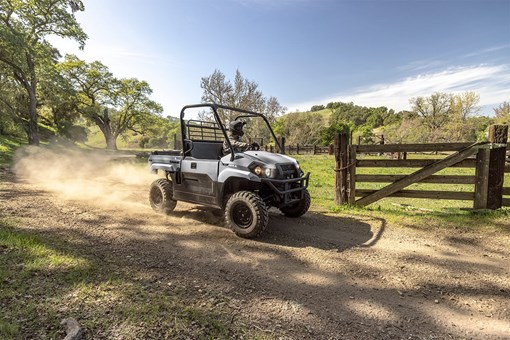

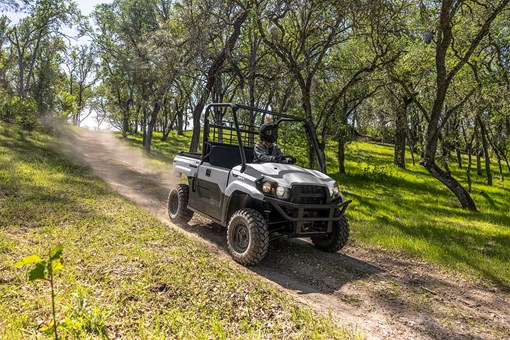

MULE PRO-MX EPS
| Engine | 4-stroke, single cylinder, SOHC, 4-valve, liquid-cooled |
| Displacement | 695cc |
| Maximum Torque | 42.7 lb-ft @ 5,000 rpm |
| Bore x Stroke | 102.0 x 85.0mm |
| Compression Ratio | 10.3:1 |
| Fuel System | DFI® with 44mm throttle body |
| Transmission | Continuously Variable Transmission (CVT) with centrifugal clutch, (H,L,N,R) |
| Final Drive | Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock |
| Engine Braking | Yes |
| Alternator Output (max) | 35.7 amp |
| Front Suspension / Wheel Travel | Double wishbone/8.6 in |
| Rear Suspension / Wheel Travel | Double wishbone/9.1 in |
| Front Tires | 25 x 8-12, radial |
| Rear Tires | 25 x 10-12, radial |
| Steering | Electric Power Steering (EPS), Tilt steering |
| Front Brakes | Dual disc, 2-piston caliper |
| Rear Brakes | Dual disc, 1-piston caliper |
| Park Brake Type | Independent, mechanical disc |
| Ground Clearance | 10.6 in |
| Fuel Capacity | 9.5 gal |
| Turning Radius | 14.0 ft |
| Cargo Bed Dimensions (LxWxH) | 33.4 x 44.1 x 9.1 in |
| Cargo Bed Load Capacity | 699 lb / 600 lb CA Model |
| Payload Capacity | 1,200 lb |
| Seating Capacity | 2 |
| Towing Capacity | 1,500 lb |
| Lighting | (2) Halogen headlights, (2) LED headlights |
| Overall Length | 110.0 in |
| Overall Width | 60.0 in |
| Overall Height | 74.4 in |
| Curb Weight | 1,587.6 lb* / 1,589.8 lb* CA Model |
| Wheelbase | 78.9 in |
| Instruments | Multi-function display includes digital speedometer, fuel gauge, odometer, hour meter, clock, dual trip meters, 2WD/4WD indicator, water temperature warning indicator, EPS warning indicators, neutral, reverse and parking indicators, differential indicator lamp, seatbelt reminder lamps |

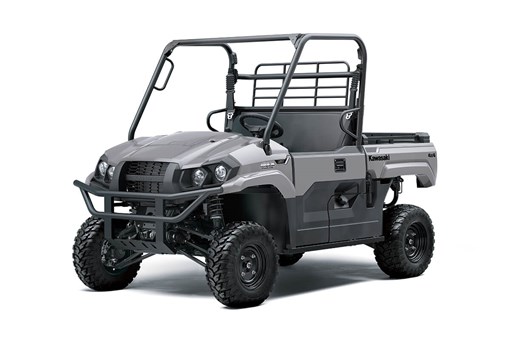

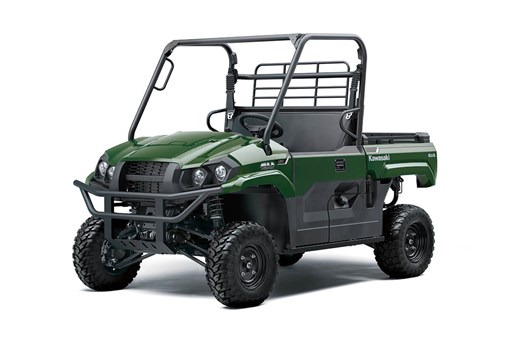

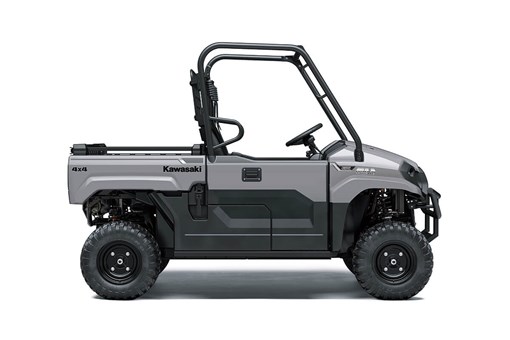

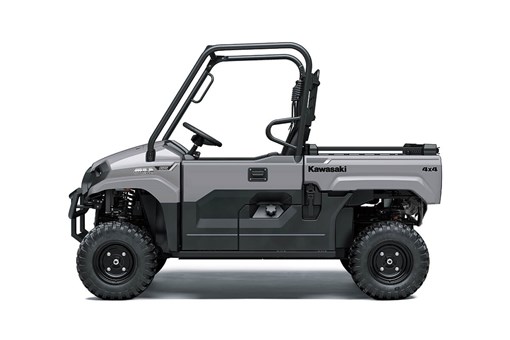

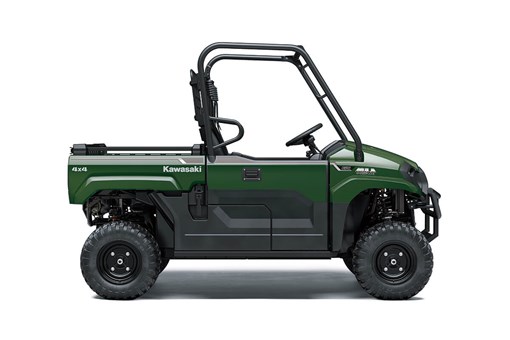

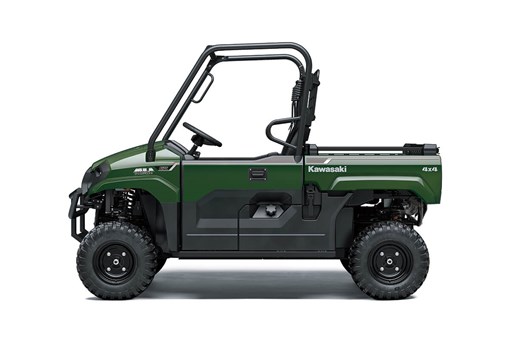

| Color Choices | Gray, Timberline Green |
