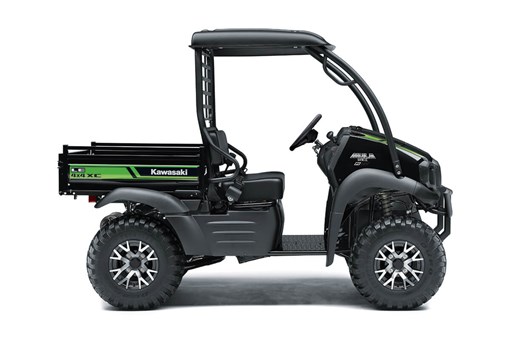

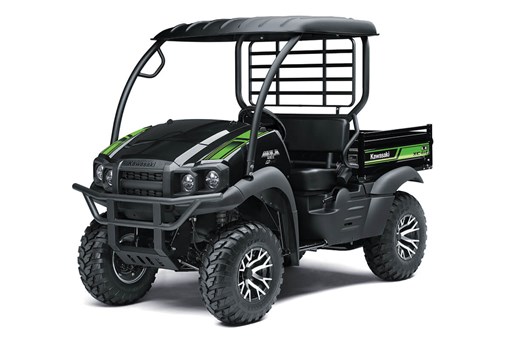

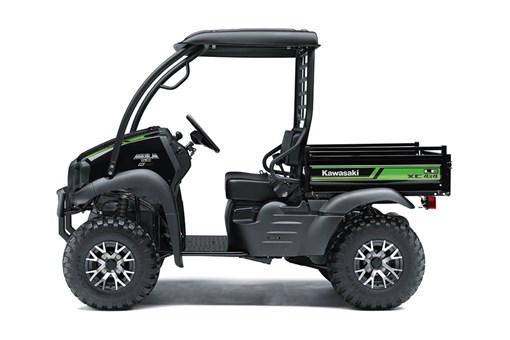

MULE SX 4x4 XC LE
| Engine | 4-stroke, single-cylinder, OHV, air-cooled |
| Displacement | 401cc |
| Maximum Torque | 21.4 lb-ft @ 2,400 rpm |
| Bore x Stroke | 3.23 x 2.99 in |
| Compression Ratio | 8.6:1 |
| Fuel System | Fuel injection |
| Transmission | Continuously Variable Transmission (CVT) with (H,L,N,R) |
| Final Drive | Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock |
| Engine Braking | No |
| Alternator Output (max) | 22.9 amp |
| Front Suspension / Wheel Travel | MacPherson Strut/3.1 in |
| Rear Suspension / Wheel Travel | Unit Swingarm/3.1 in |
| Front Tires | 26x9.00-12 |
| Rear Tires | 26x9.00-12 |
| Steering | Rack-and-pinion |
| Front Brakes | Drum |
| Rear Brakes | Drum |
| Park Brake Type | Independent, Mechanical Drum |
| Ground Clearance | 8.1 in |
| Fuel Capacity | 4.2 gal |
| Turning Radius | 11.8 ft |
| Cargo Bed Dimensions (LxWxH) | 35.6 x 40.9 x 9.6 in |
| Cargo Bed Load Capacity | 399 lb |
| Payload Capacity | 884 lb |
| Seating Capacity | 2 |
| Towing Capacity | 1,100 lb** |
| Lighting | (4) LED headlights, tail/brake lights |
| Overall Length | 106.7 in |
| Overall Width | 52.6 in |
| Overall Height | 75.0 in |
| Curb Weight | 1,098.1 lb* |
| Wheelbase | 70.1 in |
| Instruments | Fuel gauge, hour meter, oil temp light, parking brake light |
| Wheel Type | Steel |
| Additional Features | Roof, Under Seat Storage, LED Headlights, Painted Body Panels |
| Color Choices | Metallic Onyx Black |
